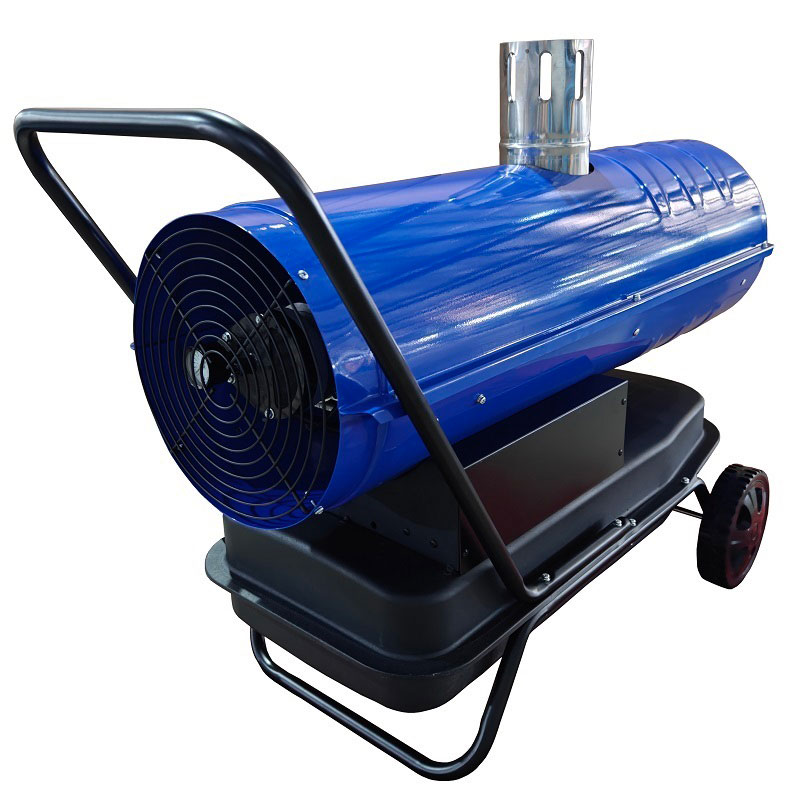

Industrial Diesel Kerosene Heater

DISESEL-1
DISESEL-2
DISESEL-4
DISESEL-5

Industrial Diesel Kerosene Heater

Heating area: 150m2—1100m2

Share to:

Industrial Diesel Kerosene -Heater Area: 150m2—1100m2

Features

  • Mobile air heater,direct diesel heater
  • Function on diesel oil or kerosene
  • With P.C.panel,smart digital temperature control type
  • Automatic lgnition
  • Stainless steel combustion chamber with fan cooling
  • With flame sensor
  • If no oil, heater will cut off the power
  • Fixed oil display
  • Cut-off protection,re-plugged in will not work automatically
  • Low pressure atomization,  combusiton completely
  • Suitable for open or well ventilated areas like factories, warehouses or construction sites

DISESEL-8DISESEL-7



Products Parameters

Model DH-20B DH-30B 0H-50B 0H-60B DH-80B
Fuel Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene
Max. Heating Power （kw） 20 30 50 60 80
Power input (V/Hz） 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz
Fuel Tank（litter） 38 56 56 56 56
Fuel consumption (kg/hr） 1.43 2.15 3.24 4 4.5
Worling Hourt(hr) 26.57 26.05 17.28 14.00 12.44
Heating Area (m2) 210 310 510 610 810
Air output (m3/hr) 1100 1500 5400 5600 5700
Packing pcs/ctn 1 1 1 1 1
N.W (Kg) 22.1 30.5 51.2 51.2 51.2
G.M(Kg) 25.89 35.8 57.2 57.2 57.2
Product Meas (mm) 910*455*665 1080*490*755 1290*495*920 1290*495*920 1290*495*920
Packing Meas (mm) 875*395*515 1005*435*620 1280*465*740 1280*465*740 1280*465*740
Qty 20ft /40ft /40hq 207*461*540 155*346*406 101*225*264 101*225*264 101*225*264

Products Parameters

Model DH-10A (handle) DH-15A (handle) DH-20A (handle) DH-20A DH-30A DH-50A DH-60A DH-80A DH-100A
Fuel Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene Diosol/ Kerosene
Max. Heating Power （kw） 10 15 20 20 30 50 60 80 100
Power input (V/Hz） 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz
Fuel Tank（litter） 12 12 18 18 38 56 56 56 68
Fuel consumption (kg/hr） 1 1 1.43 1.43 2.15 3.24 4 4.5 4.8
Worling Hourt(hr) 12 12 12.6 12.6 17.7 17.3 14.0 12.4 14.2
Heating Area (m2) 150 160 210 210 310 510 610 810 1100
Air output (m3/hr) 440 450 600 600 720 1100 1200 1700 2100
Packing pcs/ctn 1 1 1 1 1 1 1 1 1
N.W (Kg) 10 10.4 13.2 15.1 19.5 25.7 25.7 43 43
G.M(Kg) 11.5 12 15.6 17.6 22.83 30.3 30.3 49 49
Product Meas (mm) 580*232*400 580*232*400 760*310*415 780*385*530 910*455*595 1080*495*615 1080*495*615 1170*570*690 1170*570*690
Packing Meas (mm) 620*260*430 620*260*430 775*350*440 775*365*425 875*395*465 1005*435*570 1005*435*570 1170*540*690 1170*540*690
Qty 20ft /40ft /40hq 367*818*959 8367*818*959 208*465*545 207*461*540 155*346*406 101*225*264 101*225*264 60*133*156 60*133*156
