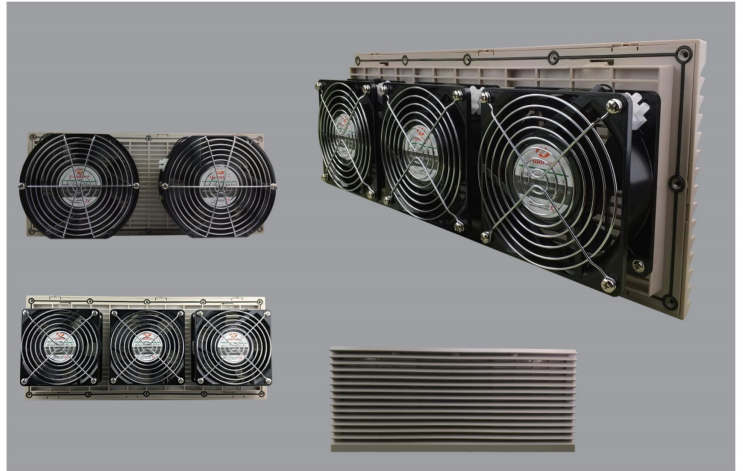

Filter Fans In Combination

COMBINATION2

Filter Fans In Combination

Share to:

Filter Fans In Combination



Descripitions



Filter Fans In CombinationCOMBINATION2



Product Legend

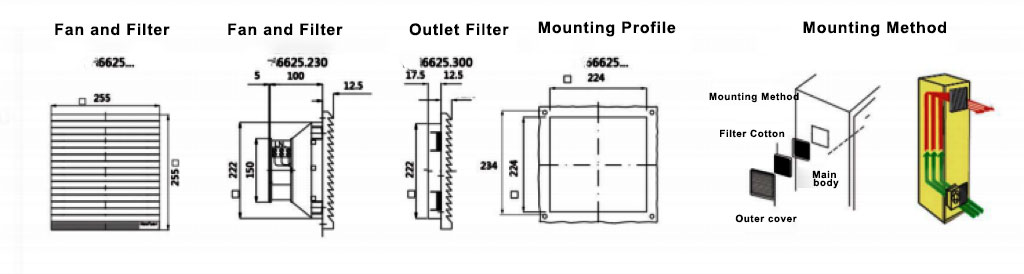

FANS-55









Products Parameters



Model No. Operating voltage Dimensions H*W*D mm SIZE(withFlange)H*W*D mm Cooling Capacity Heating optional Power(w) NoiseDB(A) Air volume(M3/h) Weight (kg)
PNCSE/2 220V/50HZ 1050X485X216 1101x536x216 2000 2000 870 65 650 49
PNCSE/3 220V/50HZ 1300X500X250 1350x550x250 3000 2000 1100 70 850 60
PNCSE/4 220V/50HZ 1300X500X250 1350x550x250 4000 2000 1800 70 850 63
PNCSE/5H 220V/50HZ 1350X620X300 1401X671X300 5000 3000 2300 77 1500 78
PNCSE/5A 3N 380V/50HZ 1600X660X360 1651X711X360 5000 3000 1900 73 1100 98
PNCSE/8 3N 380V/50HZ 1600X660X360 1651X711X360 7500 3000 3100 73 1650 98
PNCSE/9 3N 380V/50HZ 1850X772X380 1930X850X380 9000 5000 3600 72 2550 155
PNCSE/10 3N 380V/50HZ 1850X772X380 1930X850X380 10000 6000 4550 73 2550 155
